- Size: 4.1*1.7*3.5
- Place of Origin: China
- Brand Name: Vinot
- Model Number: DYSJ-YT-45
- Weight: 2000.000 kg

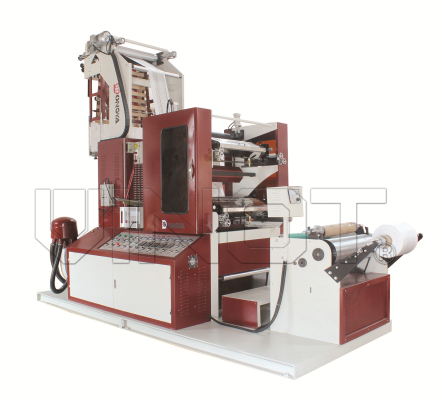

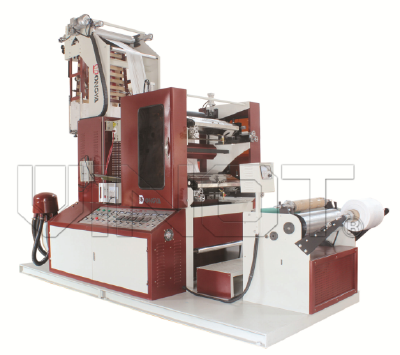

Details Pictures Of Film Blowing Machinery:
- Size: 4.1*1.7*3.5
- Place of Origin: China
- Brand Name: Vinot
- Model Number: DYSJ-YT-45
- Weight: 2000.000 kg
Main Technical Parameters Of Film Blowing Machinery:
MODEL | SJYT-600 |
SUITABLE RAW MATORIAL | HDPE LDPE LLDPE |
THICKNESS OF SINGLE FILM | 600mm |
FILM THICKNESS(HD) | 0.009-0.05 |
FILM THICKNESS(LD) | 0.025-0.11 |
MAX.EXTRUSION OUTPUT(HD) | 45kg/hr |
MAX.EXTRUSION OUTPUT(LD) | 55 kg/hr |
COVER DIMENSION(M) | 5.0x2.0x4.0 |
EXTRUDER | |
SCREW DIAMETER(mm) | Φ45 |
SCREW L/D | 30:1 |
SCREW MATERIAL | SACM-65/38CRMOLA |
CYLINDER MATERIAL | SACM-65/38CRMOLA |
CYLINDER COOLING | 370x3 |
DRIVING MOTOR(KW) | 13 |
TEMPERLURE CONTROL | 3 |
TYPE OF DIE | |
DIE SIZE | 50/80 |
TEMPERTURE CONTROL | 2 |
AIR RING | 1 |
CENTER STEADY STICK | 1 |
TAKE-UPUNIT | |
ROLLER WIDTH | 650 |
HEIGHT ADJUSTABLE TYPE | 600 |
TAKE-UP SPEED(M/min) | 10-80 |
TAKE-UP MOTOR(kw) | 0.75 |
WINDING UNIT | |
TYPE SURFACE FRICTION/CENTER REWINDER | |
WINDING MOTOR(KW) | 4 |
WINDING SPEED(M/min) | 10-80 |
