- Size: 0.95*1.25*4
- Place of Origin: China
- Brand Name: Vinot
- Model Number: DYSJ-95
- Weight: 5000.000 kg
Key Points:
1 )The screw and cylinder are nitrogenation treated and precise processed. So it is hard, wearable and anti-cauterization.
2) The whole set adopts perch brake driving. So the rewinding is very smooth.
3) The electric part adopts brake driving. So it can help to save power 30%.
4) The noise is low, no dust, environmental and power saving.

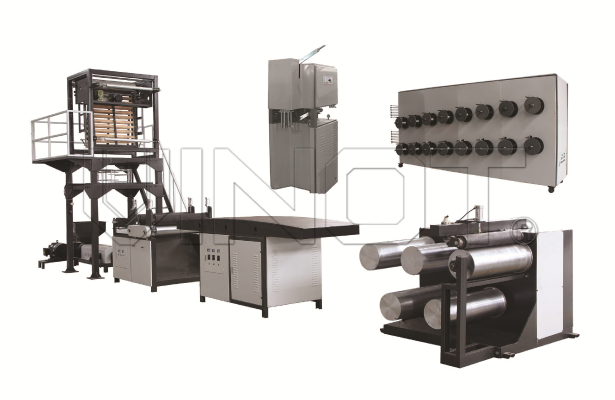

Machine Details
- Size: 0.95*1.25*4
- Place of Origin: China
- Brand Name: Vinot
- Model Number: DYSJ-95
- Weight: 5000.000 kg
Specifications:
Model | SJ-95 |
Diameter of screw | 95mm |
L/D ratio | 25:1 |
Rotational speed of screw | 30-80r/min |
Production capacity | 60kg/h |
Thickness of tape | 0.015-0.07mm |
Number of oven | ≤30 |
Install dimension | 9500×1250×4000mm |
Motor power of extruder | 15kw |
Heating power of extruder | 16kw |
Power of driving motor | 5kw |
Heating power of oven | 6kw |
Width of oven | 700mm |
Power of winding motor | 3.7kw |
Weight | 5000kg |
